PFA Welded Tube

                          yHow to orderz@¦Please inquire us for anything

@@@@@@@(ex.three dimension shape and/or the transfluent pipe(bubbling pipe) which is used together with L-Tube.)

‡@‡A-‡B~‡C~‡D@@(ExampleF@WT1/2-300~300~300)

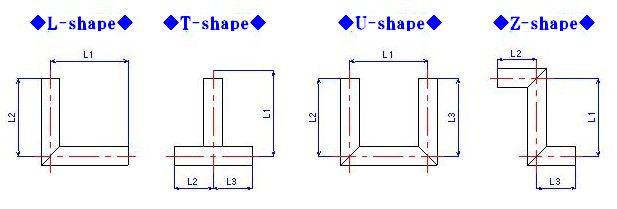

‡@@Shape of Tube ‡A@Tube size
W‚k ‚k-shape 6 6~4
‚v‚s T-shape 10 10~8
WU ‚t-shape 12 12~10
WZ ‚y-shape 19 19~16
25 25~22
@Tube length ¦ 1/4 1/4h~3.95
‡B L1 Dimension (mm) 6.3 1/4h~4.35
‡C L2 Dimension (mm) 3/8 3/8h~1/4h
‡D L13Dimension (mm) 1/2 1/2h~3/8h
3/4 3/4h~5/8h
1 1h~7/8h

                                                                  ¦ Please specify.

                                                                  ¦ About ‡D dimension, please specify only for the T-,U- and Z-shaped tube (in mm.)

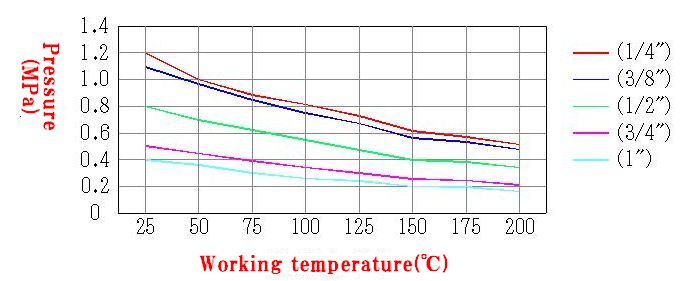

@@@@@@@@@@@@@@@yRated Pressure and Operating Temperature of PFA Tubez@

¦The above values are just for reference, and they are not the guaranteed values.
