Quick Drain Valves

KD Series

@@@@@@@@@@@@yHow to orderz@¦Special orders are acceptable. Consult us about specific applications.

KD‡@-‡A-‡B-‡C-‡D-‡E @iExampleF@KDB-50A-F-UA-PV-1j

‡@ Model ‡C Outlet Connection
B  Bellows type UA  PVC Union type
S  Seat type UB  HTPVC Union type
F  Flange type
‡A Valve Size S  Sealed wedge
25A  25A  (1") Blank  Without connection
40A  40A  (1 1/2")
50A  50A  (2") ‡D Materials

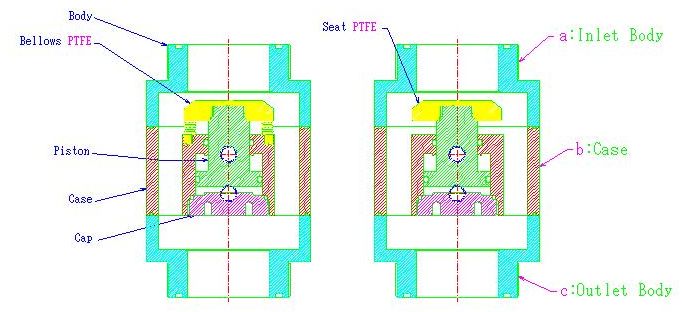

65A  65A  (2 1/2") @ aFInlet Body bFCase cFOutlet Body
75A  75A  (3") P V PVC PVC PVC (or Blank)
100A  100A  (4") C V CPVC CPVC CPVC (or Blank)
P P PP PP PP (or Blank)
‡B Inlet Connection T F PTFE CPVC PTFE (or Blank)
UA  PVC Union type H F PTFE CPVC CPVC (or Blank)
UB  HTPVC Union type A F PTFE PTFE PTFE (or Blank)
F  Flange type  @¦Please inquire for the combination.
S  Sealed wedge
M70  M70 Screw ‡E O-ring Materials
1  FKM
2  EPDM
@@@@@@@@@@@@@@@@

                                 @@ySpecificationsz@¦ All specifications are for reference only.

@@@@@@@@    ¦ It changes by a condition of the use (ex. fluid , plumbing , fitting)

@ 25A 40A 50A 65A 75A 100A
 Fluid Chemicals and DI Water
 Fluid temperature range PVC:10`40Ž / CPVC:10`80Ž
P P:10`80Ž / PTFE:10`80Ž
 Fluid pressure range 0`0.01MPa
 IN¨OUT
 Operating system Double action type
 Pneumatic supply pressure 0.3`0.5MPa
 Atmospheric temperature 0`40Ž
 Orifice ƒΣ25 ƒΣ40 ƒΣ50 ƒΣ65 ƒΣ75 ƒΣ100
