Flexible Tube/ＣＴ-type



※This is made by Penn ＆ Nitto Corp.

【How to order】 ※Please inquire us for anything

(ex. weld a tube and execute the work in various fittings to the both ends.)

CT①-②-③-④   （Example：CT1/2-2feet）

　　　　　　　　　　　　　　　　　①　　Size

　　　　　　　　　　　　　　　　　②・③　Please order various execution of the cuff part.

　　　　　　　　　　　　　　　　　④　Overall Length of Tube in feet

Features

●The materials are PFA.
●It can be used to a maximum temperature of 150℃.
●The corrugated part is annual figure.
●The corrugated part can be compressed to 50 %, and extended as long as 140 %.
●The bend radius is small(about 1/4 of its inside diameter)with almost no change in inside diameter when bend.
●It is smaller in bend radius and more excellent in flexibility of piping than a helical
convoluted tube.
●It can be used under a vacuum of 0.133 Pa(10-3 Torr).

                                                              　　　　　　　　　　　　　　　　　　　　　　　　



　                                                                   ※ This table shows nominal values.　　　　　　　　　　　　　　　　　　　　　　　　　　

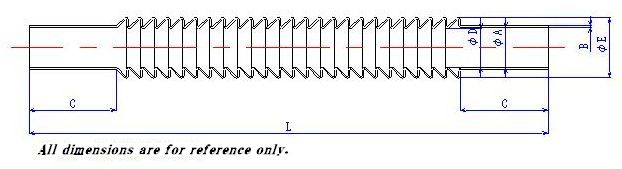

Cuff Part Corrugated Part Min. Bend. Burst
Pressure
Size ID Wall Length Min ID Max OR Radius (Room temp)
A B C D E R MPa
1/4” 6.0 0.41 19 5.5 9.4 1.6 1.24
3/8” 9.2 0.55 25 8.5 14.0 2.4 1.18
1/2” 12.1 0.68 25 11.0 18.2 3.2 0.96
5/8” 15.5 0.73 25 14.5 22.7 4.1 1.00
3/4” 18.7 0.78 38 17.4 26.6 1.8 0.88
1” 24.8 0.93 50 23.0 34.5 6.4 0.84
1-1/4” 31.2 0.93 50 29.3 41.4 7.9 0.67
1/1/2” 37.4 0.97 50 35.2 48.8 9.6 0.57
2” 50.1 1.10 50 47.2 64.5 12.7 0.48

【standard-

Length】

　

 　 　 　



　

Total ft 1 1.5 2 2.5 3 3.5
Length(L) mm 305 458 610 763 915 1068
Total 4 5 6 7 8 10 12
Length(L) 1220 1525 1830 2135 2440 3050 3660



                                                                         【Half-Length】

Size

Total Length

Coff Part

Corrugated Part

Coff Part

1/4”

171

19

133

19

3/8”・1/2”・5/8”

177

25

127

25

3/4”

190

38

144

38

1”・1-1/4”・1-1/2"・2”

200

50

100

50
